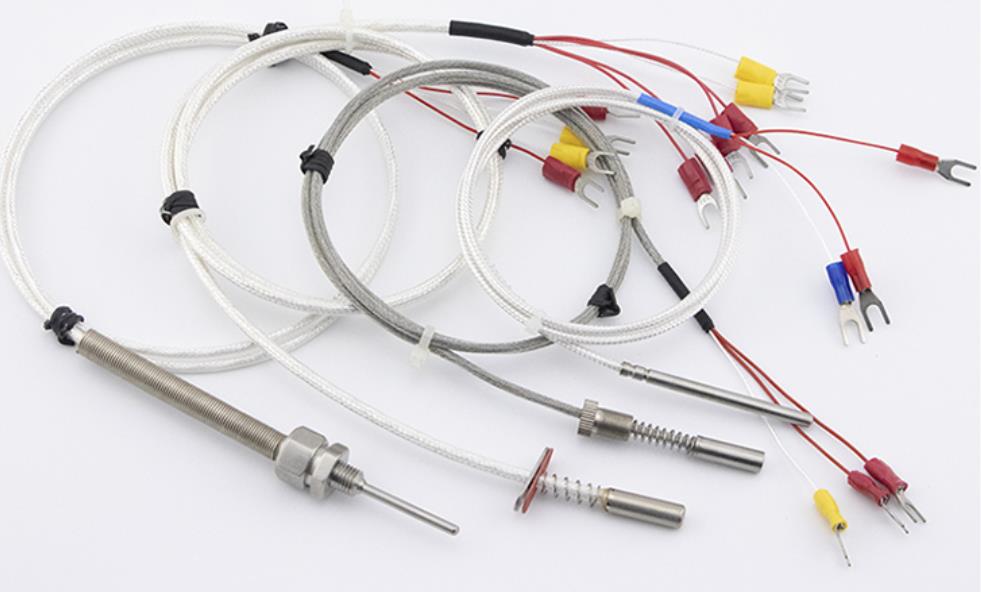

Class B Resistance Thermal Detector , Rtd 100 Ohm 3 Wire 1/3 DIN

  • 1
  • 2

Brand Name : Shinein

Model Number : RTD Temperature Sensor

Certification : CE IOS ROHS SGS

Place of Origin : China

MOQ : 10PCS

Price : USD0.1~30

Supply Ability : 10000

Packaging Details : In carton, on pallet

Name : PT100 temperature sensor

Cable length 1 m : Custom made

keyword : Temperature sensor

Features : High temperature endurance, strong thermal stability

Shell material : Stainless steel, copper, copper plated nickel, aluminum, ABS, PVC

Accuracy grade : Class B, A, 1/3 DIN

Type : PT100 / PT1000 (Customized Available)

Warranty : 1 Year

Contact Now

PT100 Type Temperature Sensor RTD Sensor Class B, A,1/3 DIN Thermocouple



Description:



Type PT100 / PT1000 (Customized Available)
Accuracy grade Class B, A, 1/3 DIN
Product name PT100 temperature sensor
Lead material three-core silver-plated FEP shield wire
Probe size 4*30mm(Customized Available)
Temperature range

-70 °C to +500 °C (continuous operation)

(temporary use to 550 °C possible)

Tolerance class B:- 70 °C to + 500 °C

Tolerance class A:-50°C to + 300 °C

Tolerance class 1/3 DIN:0 °C to+ 150 "C
RTD Thin Film origin Heraeus - Germany(Jumo/IST Availabe)
Temperature coefficient TCR=3850ppm/k
Thin Film size 2.3mm* 2.1mm*0.9mm (length * width * height) line length 10mm
Long-term stability max. Ro-drift 0.04% after 1000 h at 500°C
vibration resistance at least 40g acceleration (10-2000HZ) depends on installation
Insulation resistance > 100MQ at 20°C> 2MQ at 500°C
Shock resistance at least 100g acceleration with 8ms half sine wave, depends on installation
Self heating 0.4KW/mW (at 0°C)
Response time

water current(v = 0.4 m/s): t0.5= 0.05s,t0.9= 0.15s .

air stream (V= 2 m/s): t0.5=3.0s; t0.9= 10.0 s
Environmental conditions unhoused for dry environments only
Measuring current

100Ω: 0.3 to 1.0 mA

500Ω: 0.1 to 0.7 mA

1000Ω: 0.1 bis 0.3 mA

(self heating has to be considered)





Features:



1.High precision, good stability;
2.High sensitivity, good linear;

3.Response time short,good compatibility;
4.Compact structure, easy installation, waterproof good


Our Advantages:


. Over 10 years temperature sensor experience
. Factory direct sales with our own advance machine.
. 24-hour hotline,service more swiftly
. Resonabel price,best quality,prompt delivery.
. Professional design team to serve you.
. OEM service is availabl.
. SGS certificate assure you our good quality.



Class B Resistance Thermal Detector , Rtd 100 Ohm 3 Wire 1/3 DIN



FAQ


Q:How long will you give me the reply?

A: we will contact you in 12 hours as soon as we can.



Q:Can you accept ODM & OEM service ?

A:We professional provide OEM &ODM service and most of our product can be customized.



Q:Could I get samples?

A:Yes,we have materials in stock to help you to get the samples as soon as we can.



Q:How is the price?

A:As we believe the quality is the most important,we will provide the best quality pressure sensor we can with reasonable price.
